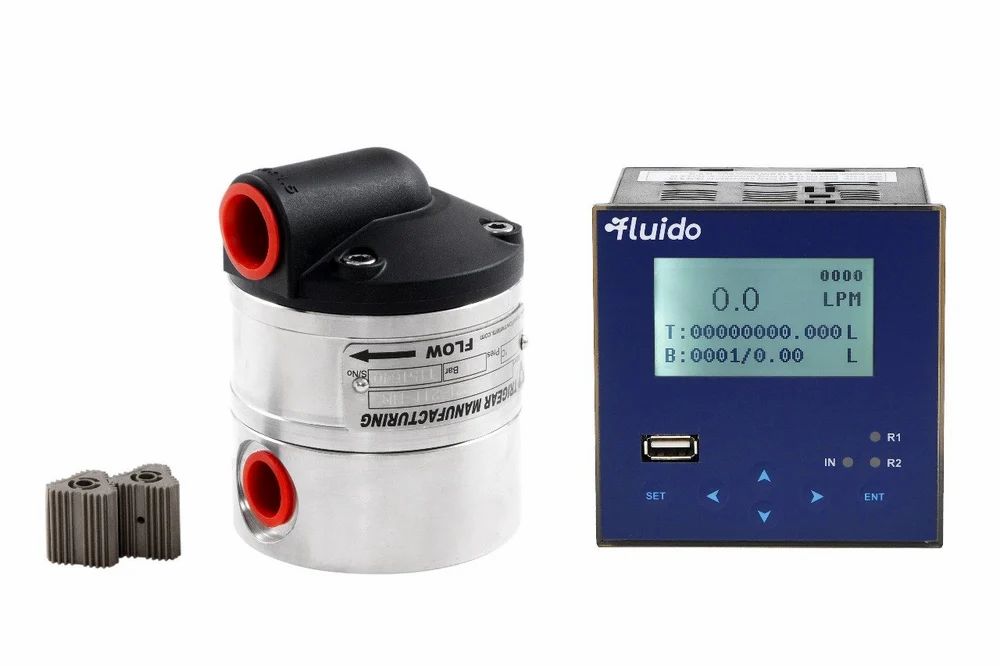

TG040 Tri Gear Flow Meter is a precision tri-gear positive displacement flow meter from FluidoSense engineered for accurate measurement of viscous liquids, oils, fuels and chemicals with superior accuracy and repeatability.
Engineered for accuracy and durability, our tg040 tri gear flow meter is manufactured under strict ISO quality standards. Tri-gear technology offers superior performance over oval gear designs with less slippage and quieter operation.
Versatile tri-gear flow measurement across industries
Engineered specifications and advantages that set this product apart in demanding applications.
10 L/Min
25 mm
±0.5%
Stainless Steel
Digital
IP66/67 (NEMA4X), integral ancillaries can be supplied Intrinsically Safe
Three-gear positive displacement principle
Superior accuracy vs. oval gear designs
Less slippage and quieter operation
Made in India by FluidoSense
| Meter Type | Oval Gear |
| Fluid Type | Oil, Fuel, Chemicals, Diesel, Lube Oil |
| Flow Range | 10 L/Min |
| Line Size | 25 mm |
| Accuracy | ±0.5% |
| End Connection | Threaded |
| Model Name/Number | TG040 |
| Material | Stainless Steel |
| Body Material | Aluminium |
| Display Type | Digital |
| Capacity Group | Medium Capacity |
| Nominal size | 40mm (1.5") |
| Accuracy @ 3cp | +- 0.25% of Reading |
| Repeatability | typically ± 0.01% of reading |
| Temperature range | -20°C ~ +120°C (-4°F ~ +250°F), refer factory for lower & higher temperatures |
| Noise Level | 75 Db |
| Aluminium Meters | 30 (440) |
| High Pressure models | refer factory |
| Output pulse resolution | Pulses/litre (pulses/US gallon) – nominal |
| Reed Switch output | 30Vdc x 200mA max. (maximum thermal shock 10°C (50°F)/minute) |
| Hall Effect output (NPN) | 3 wire open collector, 5 ~ 24Vdc max., 20mA max. |
| Optional outputs | 4 ~ 20mA, scaled pulse, quadrature pulse, flow alarms or two stage batch control |
| Protection class | IP66/67 (NEMA4X), integral ancillaries can be supplied Intrinsically Safe |
| Dimensions | Refer datasheet |
| Pressure drop chart | Refer datasheet |
TG040 Tri Gear Flow Meter is a precision tri-gear positive displacement flow meter from FluidoSense engineered for accurate measurement of viscous liquids, oils, fuels and chemicals with superior accuracy and repeatability.
Tri-gear flow meters use three gears instead of two, offering superior accuracy and repeatability with less slippage. They operate more quietly and smoothly than oval gear meters, making them a better choice for batching, high-viscosity fluids and precision applications.
All FluidoSense tri-gear flow meters come with a standard 12-month warranty against manufacturing defects. Calibration certificates are provided with every unit.
Tri-gear meters are ideal for petroleum products, oils, chemicals, fuels, hydraulic fluids and other clean viscous liquids. Specific suitability depends on material and seal compatibility.
Fill out the inquiry form below with your specific requirements or call us directly at +91 98989 58888. Our sales team will respond within 24 hours.
