The very nature of any fluid is to flow. Till the time fluid is flowing in a natural habitat, it is always a matter of visual delight. However, when it comes to fluid flow within the boundaries of industrial setup, the flow has to be controlled and coded. Each single drop, flowing in pipes, crossing the valves, entering in vessels brings a value attached to it that ultimately uplifts value of the...

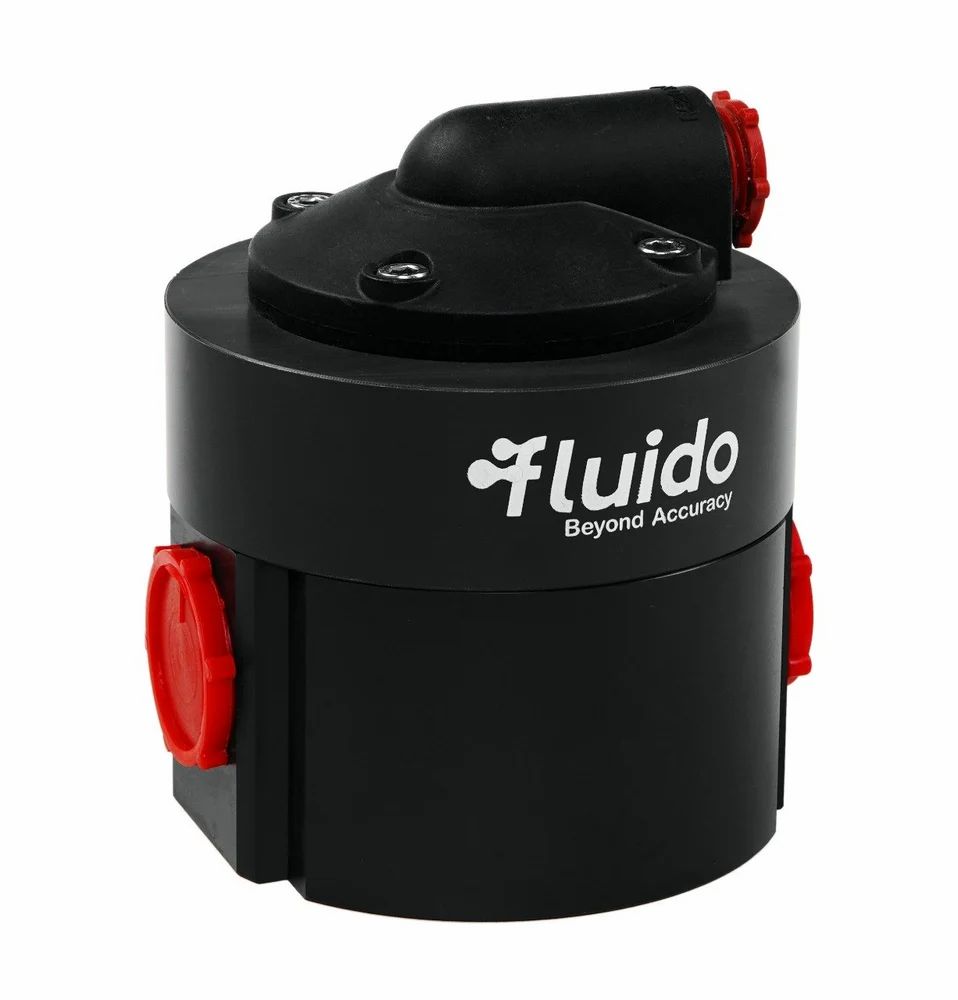

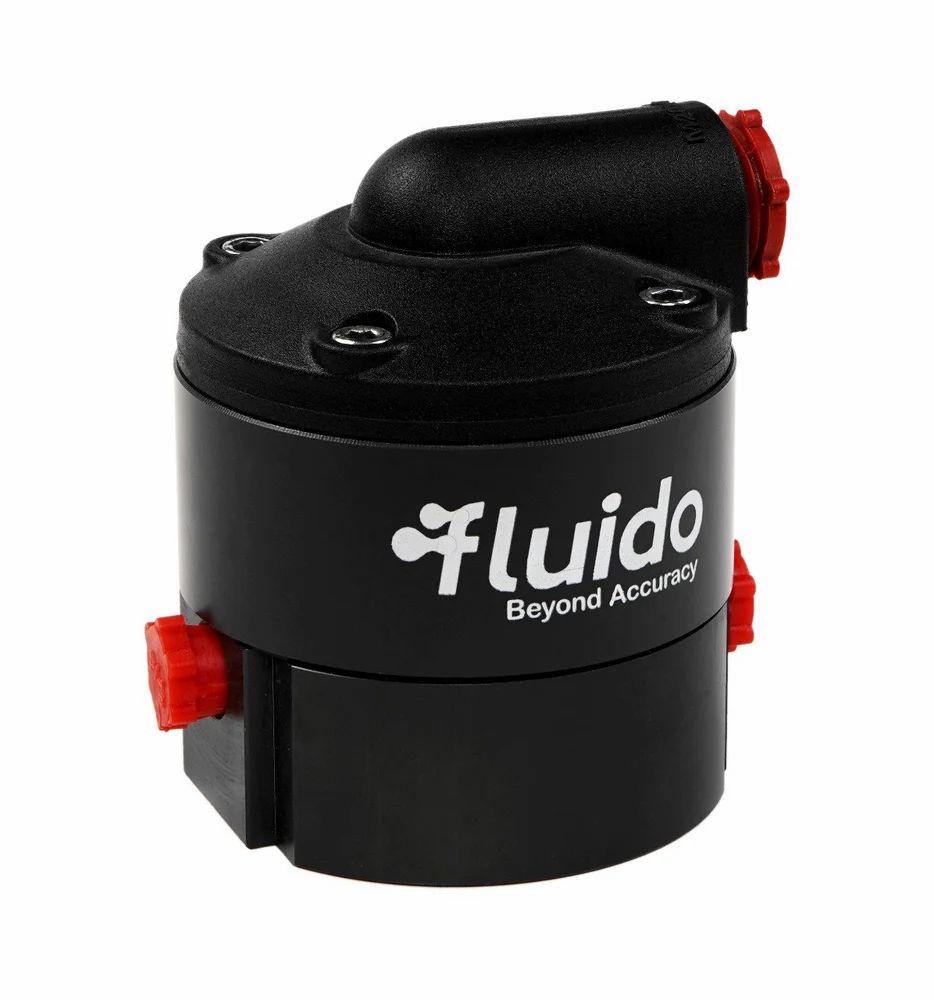

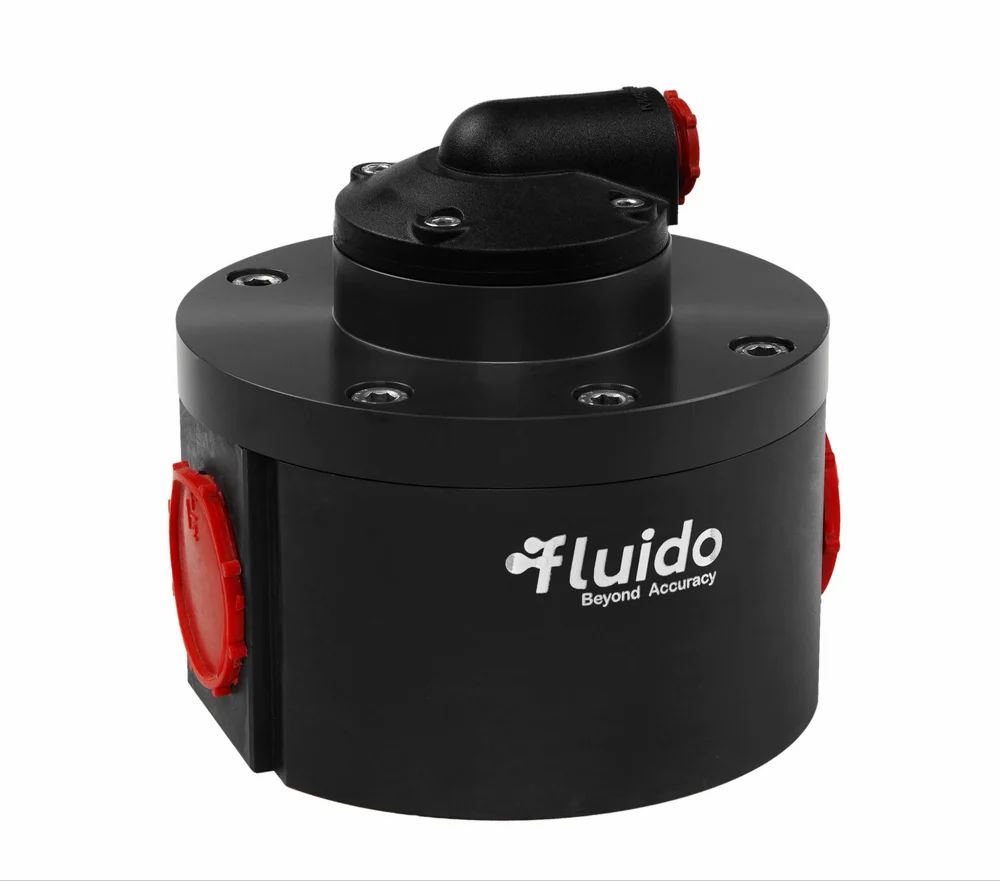

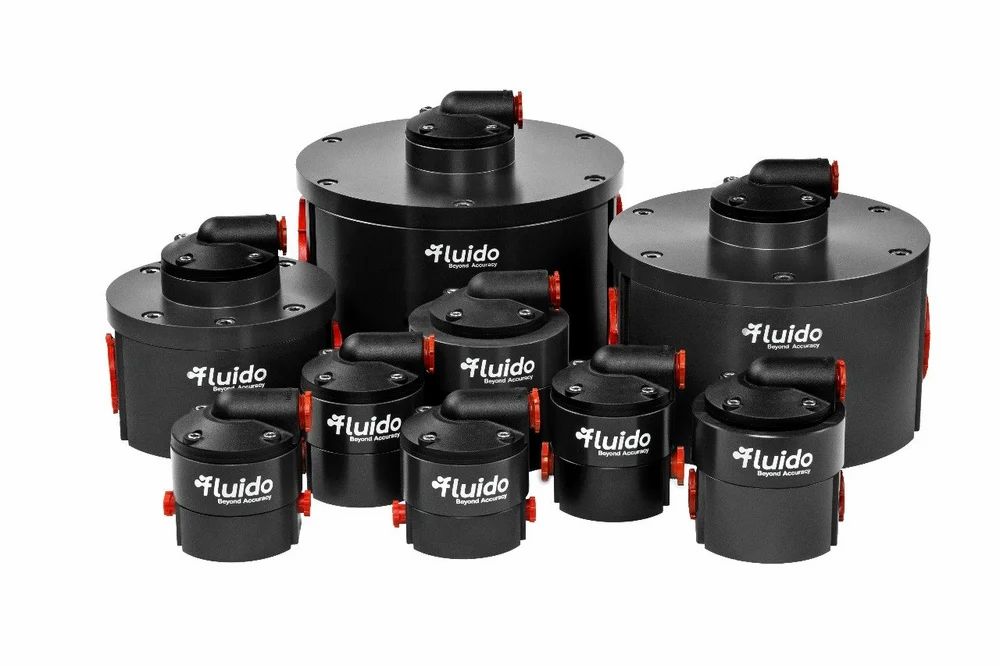

Engineered for accuracy and durability, our micro fuel flow sensor is manufactured under strict ISO quality standards. Each unit is calibrated and tested to deliver consistent performance across demanding industrial applications.
Versatile flow measurement across industries
Engineered specifications and advantages that set this product apart in demanding applications.
1/4 inch
-40 to +85 deg C
+/- 0.5%
0.7 to 60 LPH
Robust industrial-grade construction
High repeatability and reliable performance
Easy installation and maintenance
Made in India by FluidoSense
| Medium | Liquid |
| Output type | 0 to 5 V, Pulse, 4 to 20 mA, 0 to 10 V, RS485 |
| Application | Industrial |
| Line size | 1/4 inch |
| Supply voltage | 24 V DC |
| Flange Material | Aluminum |
| Temperature range | -20 to 120 °C |
| Sensor Type | Over Gear |
| Operating Temperature | -40 to +85 deg C |
| Accuracy | +/- 0.5% |
| Model Number | FS04 |
| Brand | Fluido |
| Flow Range | 0.7 to 60 LPH |
| Max pressure | 25 Bar |
The very nature of any fluid is to flow. Till the time fluid is flowing in a natural habitat, it is always a matter of visual delight. However, when it comes to fluid flow within the boundaries of industrial setup, the flow has to be controlled and coded. Each single drop, flowing in pipes, crossing the valves, entering in vessels brings a value attached to it that ultimately uplifts value of the...
Yes, we offer customisation in flow range, output signals (Pulse, 4-20mA, RS485 MODBUS), display options (local/remote), and material specifications. Contact our team with your specific requirements for tailored configurations.
Yes, FluidoSense provides comprehensive installation guidance, on-site commissioning, and lifetime technical support across India. Our qualified engineers are available for site visits and troubleshooting.
All FluidoSense flow meters come with a standard 12-month warranty against manufacturing defects. Extended warranty plans are available on request. Calibration certificates are provided with every unit.
Fill out the inquiry form below with your specific requirements or call us directly at +91 98989 58888. Our sales team will respond within 24 hours with detailed quotation and technical assistance.
