FS06 Oval Gear Flow Meter
FS06 Oval Gear Flow Meter view 1

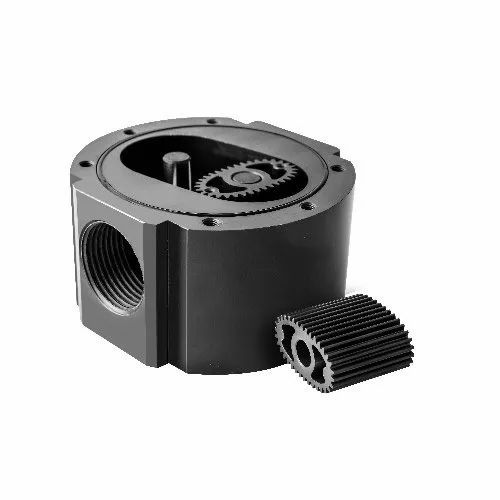

FS06 Oval Gear Flow Meter view 2

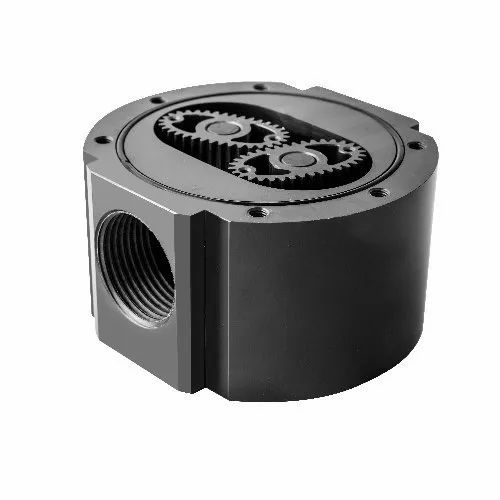

FS06 Oval Gear Flow Meter view 3

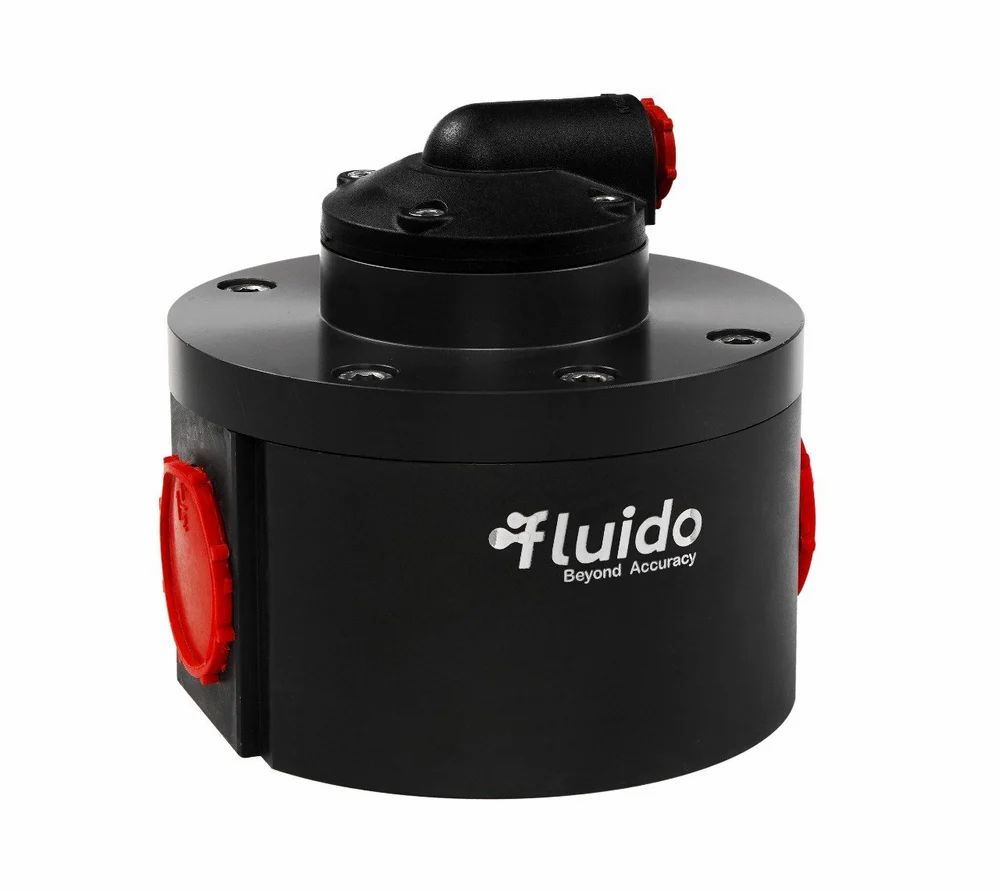

FS06 Oval Gear Flow Meter view 4

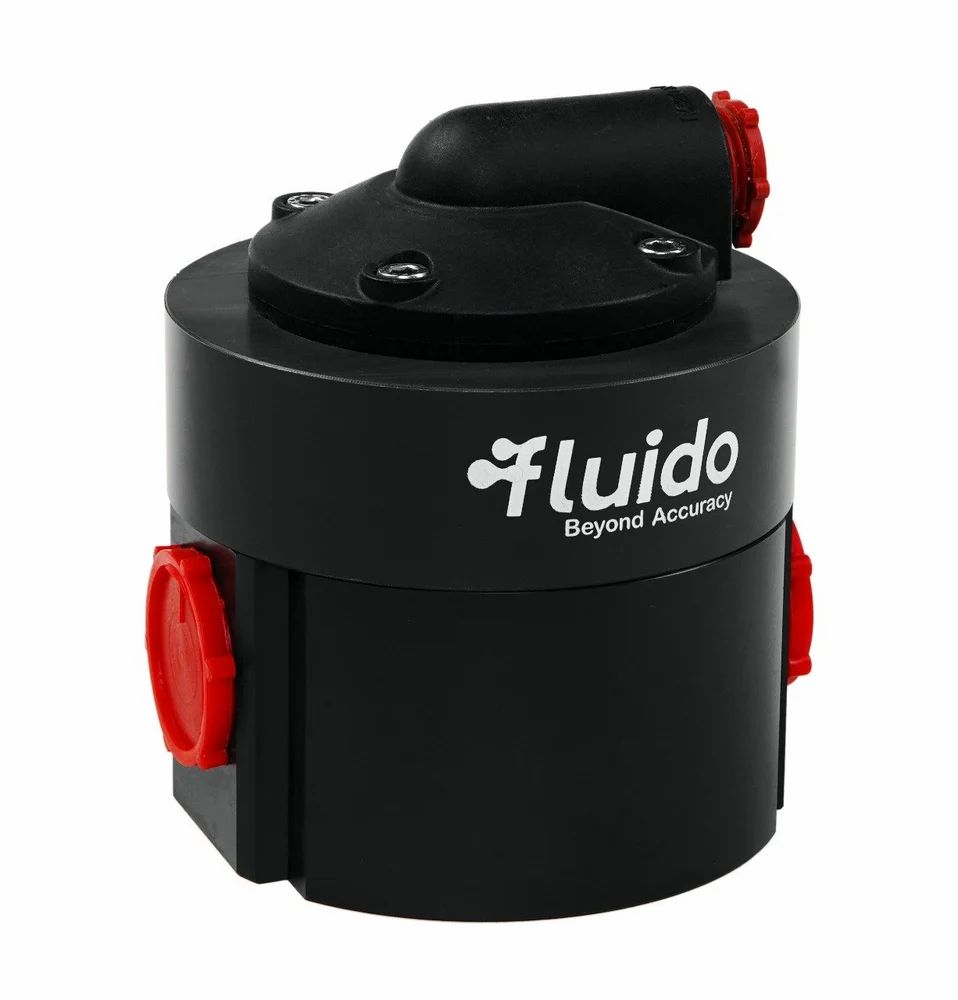

FS06 Oval Gear Flow Meter view 5

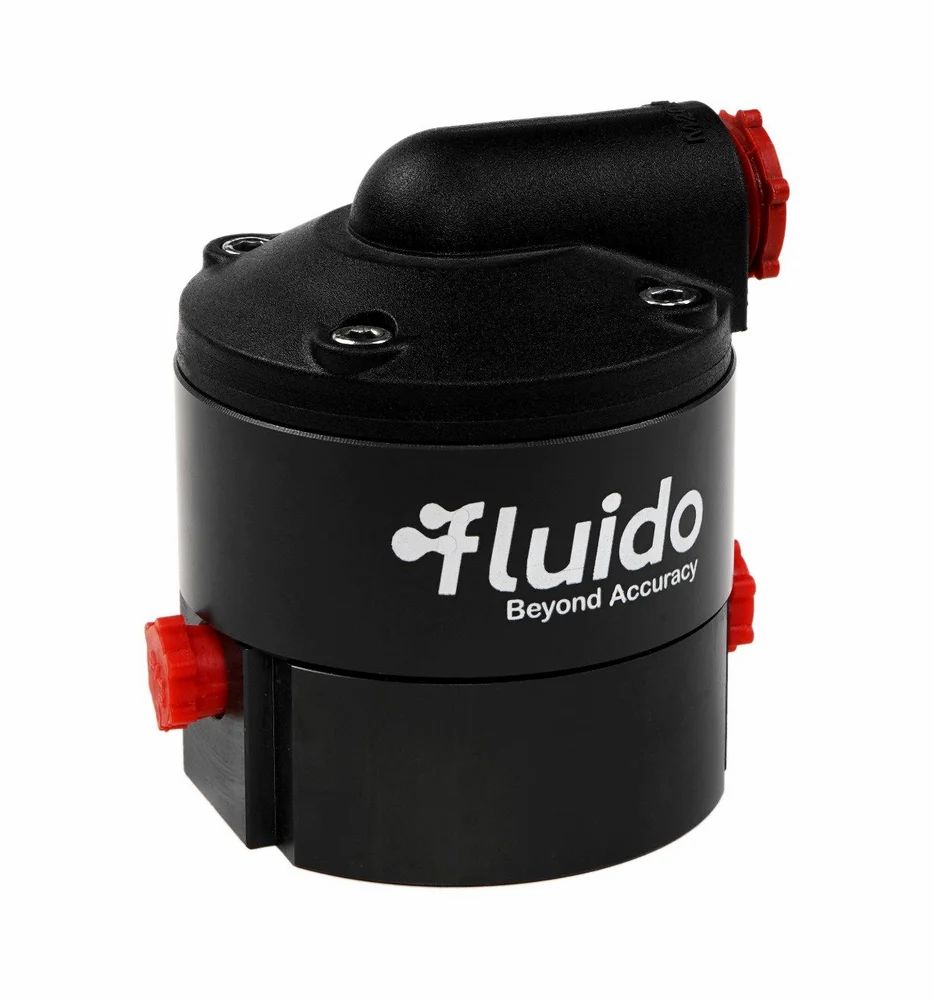

FS06 Oval Gear Flow Meter view 6

Product Overview

FS06 Oval Gear Flow Meter is a precision positive displacement flow meter from FluidoSense engineered for industrial applications. Built on the proven oval gear principle for accurate measurement of viscous liquids, oils and chemicals.

FluidoSense Advantage

Engineered for accuracy and durability, our fs06 oval gear flow meter is manufactured under strict ISO quality standards. Each unit is calibrated and tested to deliver consistent performance across demanding viscous liquid measurement applications.

Inquiry Now

Areas of Application

Versatile oval gear flow measurement across industries

Diesel
Lube Oil
Petrol
Fuel Oil
Oil

Key Features & Benefits

Engineered specifications and advantages that set this product apart in demanding applications.

FS06 Oval Gear Flow Meter Features
Line Size

100 mm

Flow Range

5 L/H

Accuracy

+/- 1 % Of Reading

Output Signal

4–20 mA, Pulse

Positive displacement oval gear principle

High accuracy and repeatability

ISO certified manufacturing standards

Made in India by FluidoSense

Fluid Type Diesel, Lube Oil, Petrol, Fuel Oil, Oil
Line Size 100 mm
Flow Range 5 L/H
Accuracy +/- 1 % Of Reading
Body Material Aluminium
End Connection Threaded
Model Name/Number FS06
Output Signal 4–20 mA, Pulse
Capacity Group Low
Normal Size 1/4"
Repeatibility Typically 0.01% Of Reading
Temperature Range 20 Degree C to 85 Degree C (for Aluminium body) -20 Degree C to 120 Degree C (for SS. Body)
Pulse / Liter 3081 / L
Noise 75 db

  • ISO certified manufacturing facility in Gandhinagar, Gujarat
  • Each unit calibrated and tested before dispatch
  • Custom configurations available for OEM requirements
  • Pan-India delivery and on-site installation support
  • Comprehensive warranty and after-sales service

  • Install in horizontal or vertical pipeline as per flow direction arrow
  • Provide upstream strainer to prevent particulate damage to gears
  • Maintain stable mounting to avoid vibration-induced errors
  • Use proper electrical grounding and shielded signal cables
  • Refer to product manual for complete commissioning steps

Frequently Asked Questions

FS06 Oval Gear Flow Meter is a precision positive displacement flow meter from FluidoSense engineered for industrial applications. Built on the proven oval gear principle for accurate measurement of viscous liquids, oils and chemicals.

Oval gear flow meters work on the positive displacement principle. Liquid passes into the measuring chamber and displaces two oval gears. Each rotation corresponds to a fixed unit volume. Reed or Hall Effect sensors detect the rotation and generate pulses proportional to flow rate.

All FluidoSense oval gear flow meters come with a standard 12-month warranty against manufacturing defects. Calibration certificates are provided with every unit.

Oval gear meters are ideal for viscous, non-abrasive clean liquids such as petroleum products, oils, chemicals, grease, fuels and pastes. Specific suitability depends on material and seal compatibility.
