Product Overview

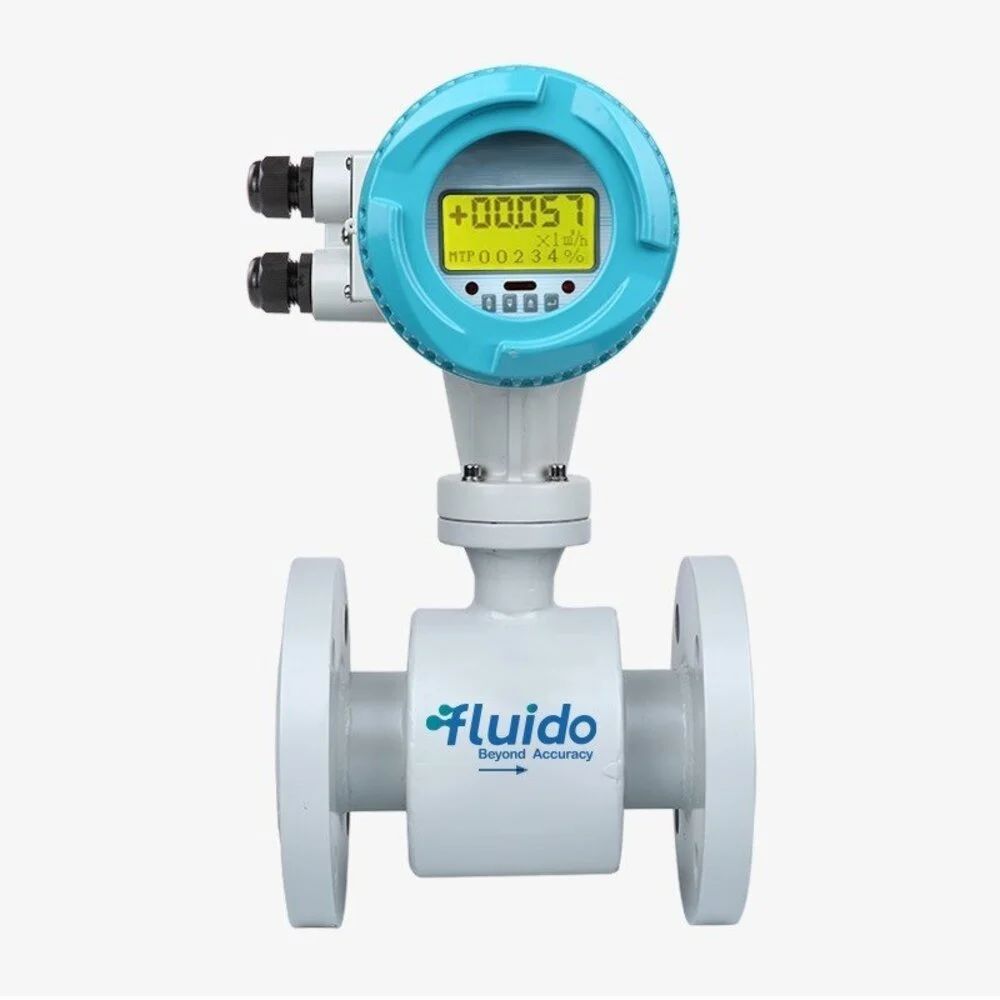

Electromagnetic Water flow meter with GPS based telemetry system for real time data meaning.The very nature of any fluid is to flow. Till the time fluid is flowing in a natural habitat, it is always a matter of visual delight. However, when it comes to fluid flow within the boundaries of industrial setup, the flow has to be controlled and coded. Each single drop, flowing in pipes, crossing the val...

FluidoSense Advantage

Engineered for accuracy and durability, our electromagnetic flow meter with telemetry system is manufactured under strict ISO quality standards. Each unit is calibrated and tested to deliver consistent performance across demanding industrial applications.

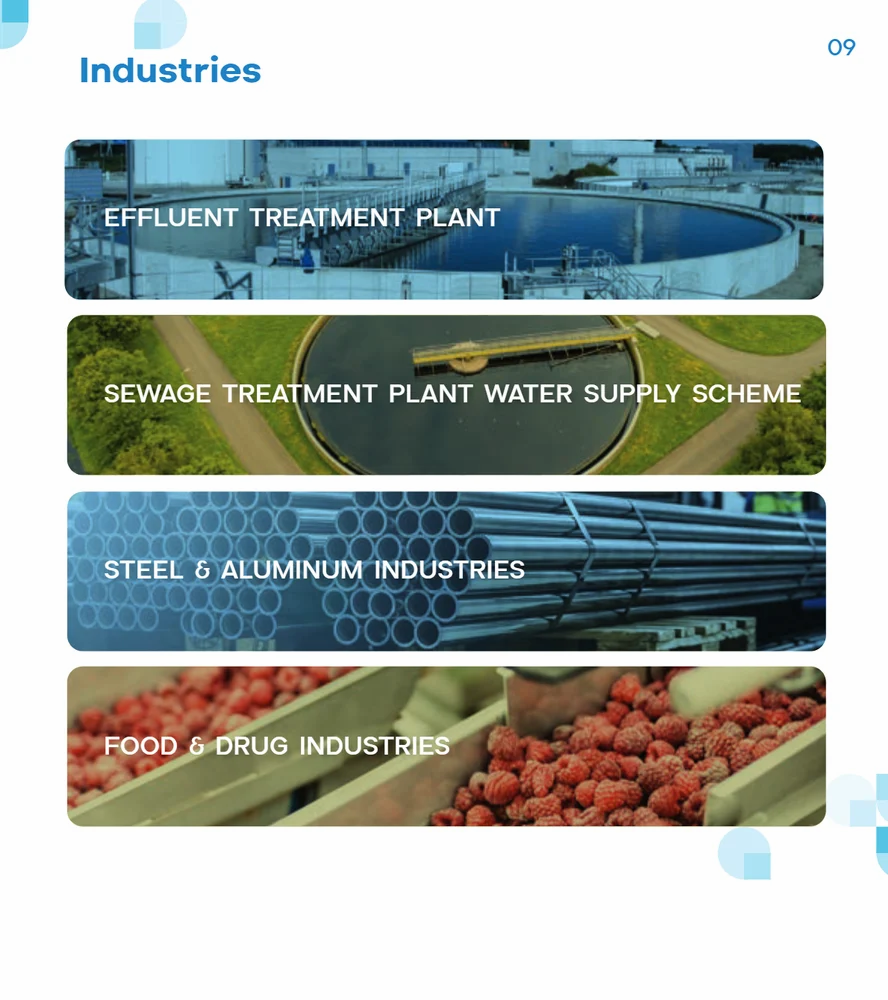

Areas of Application

Versatile electromagnetic flow measurement across industries

Water
ETP
Water Treatment
Wastewater Management
Chemical Industry
Food & Beverage

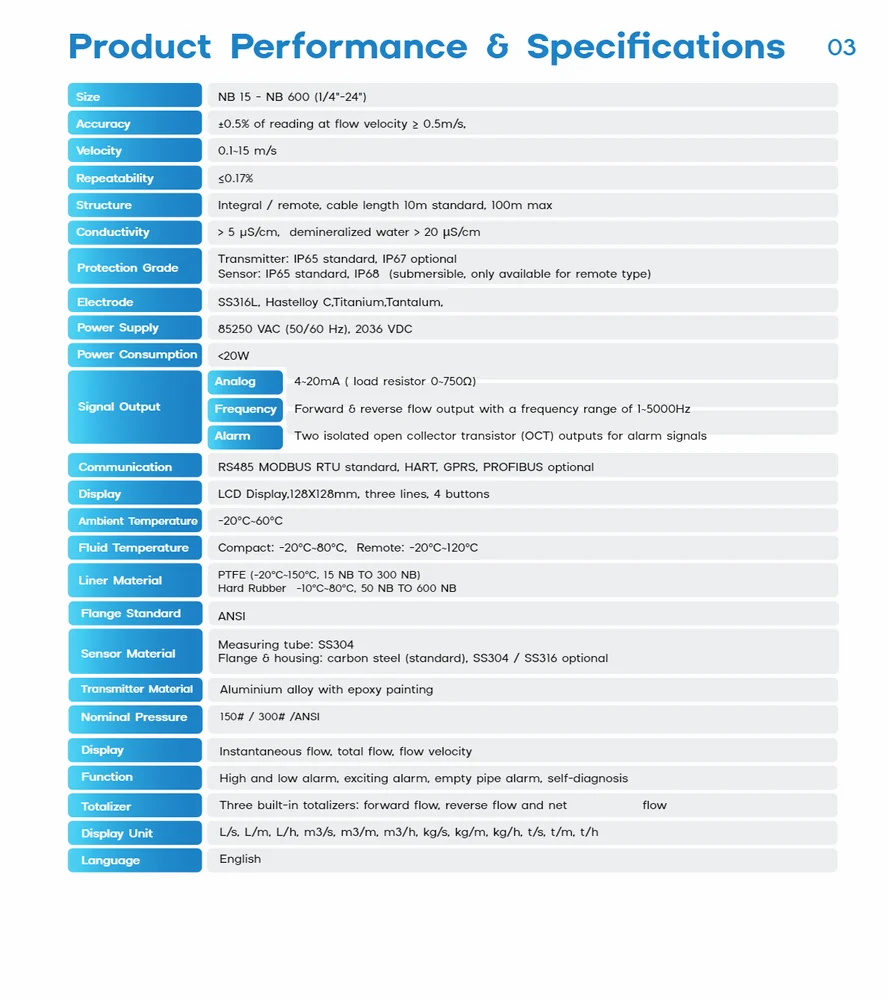

Key Features & Benefits


Engineered specifications and advantages that set this product apart in demanding applications.

Electromagnetic flow meter with telemetry system Features
Nominal Diameter

25 mm

Material

MS

Display

Digital

Flow Range

0 to 1000 m3/Hr

Accuracy

0.5%

No moving parts - maintenance-free operation

Bi-directional flow measurement capability

ISO certified manufacturing standards

Made in India by FluidoSense

Nominal Diameter 25 mm
Brand Fluido
Pipe Size 1 Inch
Material MS
Model Name/Number FSEMF-25NB-I-P-S-C-D-O1-A15
Display Digital
Connection Flanged
Flow Range 0 to 1000 m3/Hr
Accuracy 0.5%
Flange Size 1/2" to 24"
Country of Origin Made in India
Application Media Water
Usage/Application ETP

  • ISO certified manufacturing facility in Gandhinagar, Gujarat
  • Each unit calibrated and tested before dispatch
  • Custom configurations available for OEM requirements
  • Pan-India delivery and on-site installation support
  • Comprehensive warranty and after-sales service
  • Expert technical support by qualified engineers

  • Install in horizontal or vertical pipeline as per flow direction arrow
  • Maintain minimum 5D straight pipe upstream and 3D downstream
  • Ensure pipeline is fully primed and free from air pockets
  • Use proper electrical grounding and shielded signal cables
  • For electromagnetic meters: ensure proper earthing rings are installed
  • Refer to product manual for complete commissioning steps
  • Contact FluidoSense support for on-site installation assistance

Frequently Asked Questions

Electromagnetic Water flow meter with GPS based telemetry system for real time data meaning.The very nature of any fluid is to flow. Till the time fluid is flowing in a natural habitat, it is always a matter of visual delight. However, when it comes to fluid flow within the boundaries of industrial setup, the flow has to be controlled and coded. Each single drop, flowing in pipes, crossing the val...

Electromagnetic flow meters work on the Faraday's Law of Electromagnetic Induction. A magnetic field is generated across the pipe and as conductive liquid flows through, it induces a voltage proportional to the flow velocity, which is measured by electrodes.

Yes, FluidoSense provides comprehensive installation guidance, on-site commissioning, and lifetime technical support across India. Our qualified engineers are available for site visits and troubleshooting.

All FluidoSense flow meters come with a standard 12-month warranty against manufacturing defects. Extended warranty plans are available on request. Calibration certificates are provided with every unit.

Fill out the inquiry form below with your specific requirements or call us directly at +91 98989 58888. Our sales team will respond within 24 hours with detailed quotation and technical assistance.
